JAQ Trading Mining and Construction
Service Offering
We pride ourselves on being 100% Proudly South African.
We aim to be a Supplier of choice through effective management of cost drivers, transparency, sincere relationships and commitment to optimal Total Cost of Ownership solutions to all clients and end users. We also want to ensure that our clients are fully satisfied with our services in all departments and for future purposes recommend us to other businesses.

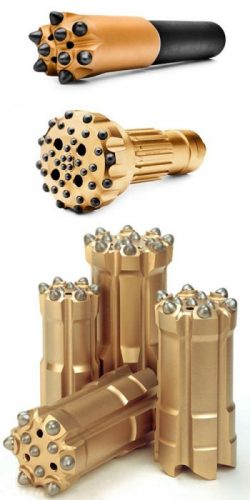

The Percussive Diamond Inserts (PDIs) from JAQ Trading deliver high impact resistance and exceptionally low wear rates even in highly abrasive rock formations. Eliminating the “Cost per Meter Drilled.
Reduce
– Equipment utilisation
– Drilling and project productivity
– Contractor profitability and competitiveness
Deliver
– Consistent hole diameters
– Single pass drilling
– Credible option for remote rig operation
Improve
– Rig downtime
– Duration of each mining cycle
– Bit inventory
– Service and maintenance time and costs
Both economic and technical efficiency of a mining project is affected by where the tip of the pick hits unbroken rock. Using mining picks maximize efficiency of the machinery and delivers balance between toughness, impact and wear resistance.
Used for
– Roof bolting
– Blast hole drilling
– Gas extraction drilling
– Exploration drilling

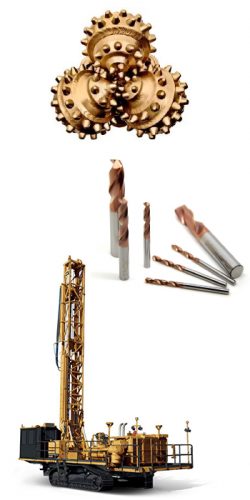

JAQ TRADING ROTARY DRILLING PRODUCTS INCLUDE:
Tungsten Carbide drill bits, PCD drill bits, Drilling systems ,Accessories.
Used for
– Wet drilling
– Air flushing
– Dry drilling
– Vacuum drilling
Different valves function in different ways. Check valves permit free flow in one direction and block flow in the opposite direction. The directional control valve is used to pass on the pressure medium (i.e. flow) in an orderly fashion to a particular direction. Pressure control valves switch (or control) at a certain pressure; the switching pressure may be adjusted on the valve.
Directional Control Valves
– Check valve
– Directional spool valve
– Directional poppet valve
Pressure Control Valves
– Control task: variable throttle valve
– Switching task: fixed throttle valve
Flow Control Valves
– Throttle valve: flow Δp dependent
– Control valve: flow Δp independent
Flow Control Valves
– Servo hydraulic valve
– Proportional hydraulic valve
JAQ Trading’s medium voltage motors comprises its customised large unibox series and its high spec MS4 totally enclosed fan cooled TEFC cast iron motors series. The unibox covers the 300kw series 18 MW power range while the MS4 Series range is in the 150kW to 1800kW power range.

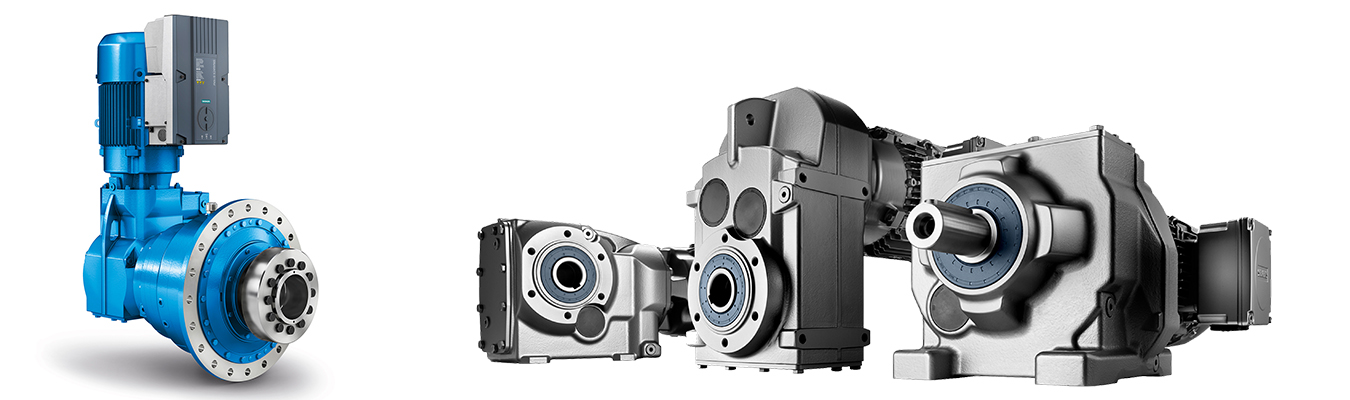

The LS5 high efficiency range of low voltage motors and geared drives is developed to meet the stringent specs applicable in the mining industry. These motors have been proven to be highly successful and are in demand not only in the mining sector but also in many other industries.
We also supply a robust standard range of low voltage industrial motors and gearboxes which are manufactured in accordance with international standards.

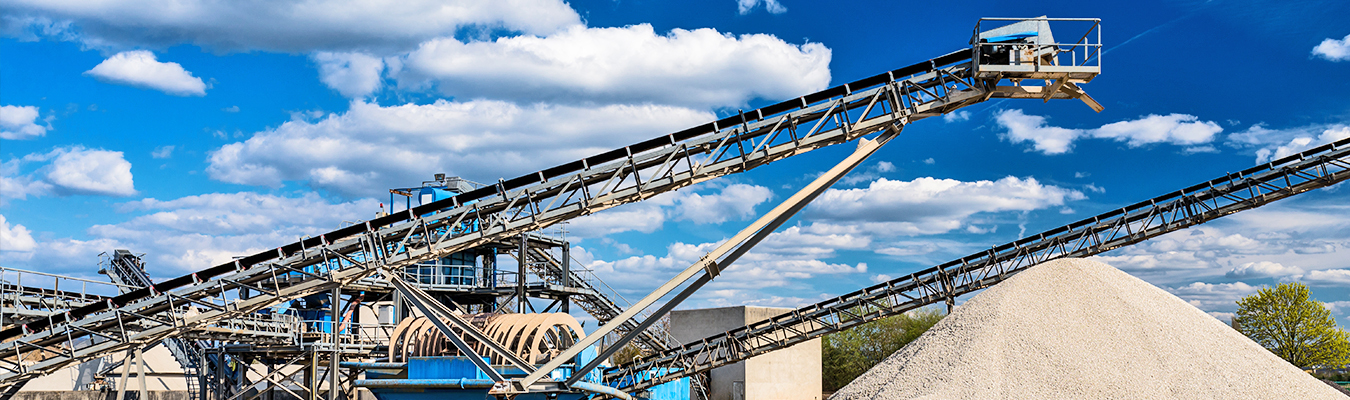

A conveyor system is a common piece of mechanical handling equipment that moves materials. Take-up adjustment is also important for any conveyor using belts as a means to power rollers, or belts themselves being the mover.
We offer a variety of conveyor systems and materials handling solutions, all designs:
– Mining Conveyors
– Warehouse Automation
– Aluminium Conveyors
– Zero Pressure Accumulation (ZPA) Conveyors
– Live Roller Conveyors
– Belt Conveyors
– Incline /Decline Slider Bed Belt Conveyors (Floor to Floor)
– Gravity Conveyors
– Extend-A-Belt Telescopic Belt Conveyors
– Chain Conveyors
– Slat-band Conveyors
– Bag Stacking Conveyors
– Truck Loading and Unloading Conveyor
– Trough Conveyors (Bulk Handling)
– Screw Conveyors
– Lifting Equipment
– Cold / Sub-Zero Storage Conveyors
– Pallet Conveyors
– Overhead Monorail Conveying
– Accumulating Spiral Conveyors
– Shuttle Car Conveyors
Conveyor Components & Spares
The advantages of a conveyor system are:
– Creating a work flow process
– More efficient usage of space
– Reduced manual involvement
– Increased production output
– More efficient production process
– Reliable and cost effective
– Creating a work flow process
– More efficient usage of space
– Reduced manual involvement
– Increased production output
– More efficient production process
– Reliable and cost effective
Pulley systems are used to provide us with a mechanical advantage, where the amount of input effort is multiplied to exert greater forces on a load.
Fixed Pulleys
Fixed pulley is perhaps the simplest form of the pulley system and it has been used since ages. The fixed pulleys are used to either lift or lower down a heavy object. The wheel is fixed in the pulley. This is the only pulley system in which equal or more amounts of effort are required to lift off the load from the ground.
The advantage of the fixed pulley system is that no force would be required in pushing the heavier objects or pulling them, which defeats the purpose of the pulley system altogether.
Moveable Pulleys
The movable pulley is the type of pulley that uses less effort compared to the fixed pulley because the wheel in this pulley system is movable. This wheel moves with the load that has to be lifted. The force that is required to lift the object is multiplied to the force that could be exerted when the load has to be lifted manually making the task easier. This is the reason why movable pulleys are used largely compared to the fixed pulleys. In most of the everyday setup, them movable pulley is used. Also, the movable pulleys are the ones that use up very little space compared to the other types of pulleys.
Compound Pulleys
When the fixed pulley and the movable pulley is combined, the end result is a compound pulley. This is used to lift off a very heavy object and should only be used when a long distance needs to be covered. More than that, the compound pulley requires minimum efforts as there are a number of pulley systems at work. More the number of pulley systems, the lesser effort is required to lift off the load. The disadvantage of the compound pulley systems is that it requires a lot of space. Therefore, these pulley systems need to be used only in a large space.

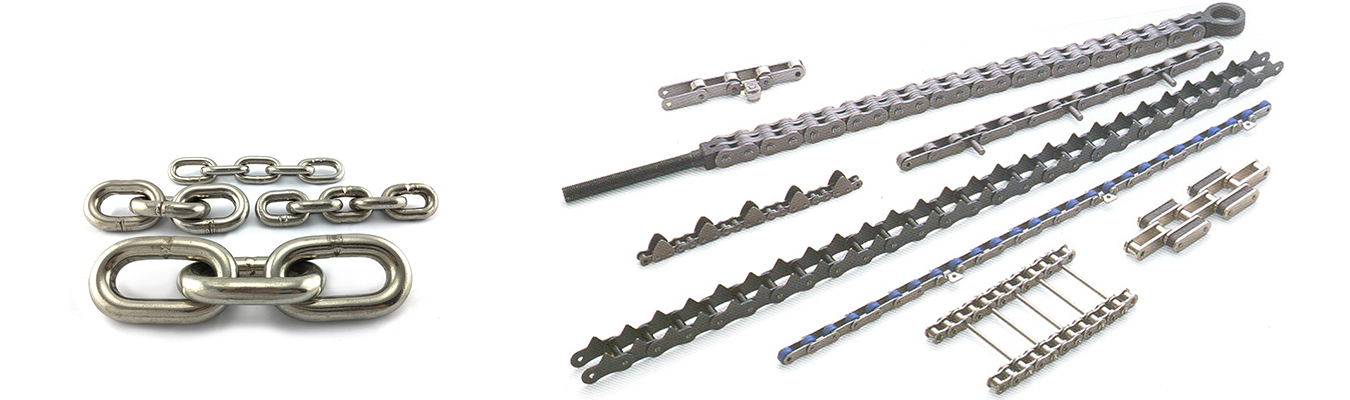

Pitch sizes from ¼’’ (6.35mm) up to 20’’ (500mm)
– Box Scaper Chains for Flow Conveying
– Cement Mill Chains
– Earth Moving and Roadmarking Chains
– Fertilizer Industry Chains
– Gray Pin & Ley Bushed Chains
– Heavy Duty Transmission Chains
– Malleable Iron Buckets
– Mining Chains
– Pintle Chains
– S- Class Bushed Chains
– Special Conveyor and Elevator Chains
– Steel Mill Chains
– Sugar Mill Chains
– Welded Steel Chains
– Chain Components
– An imported range of Small Pitch, Transmission, Conveyor and other Special Chains.

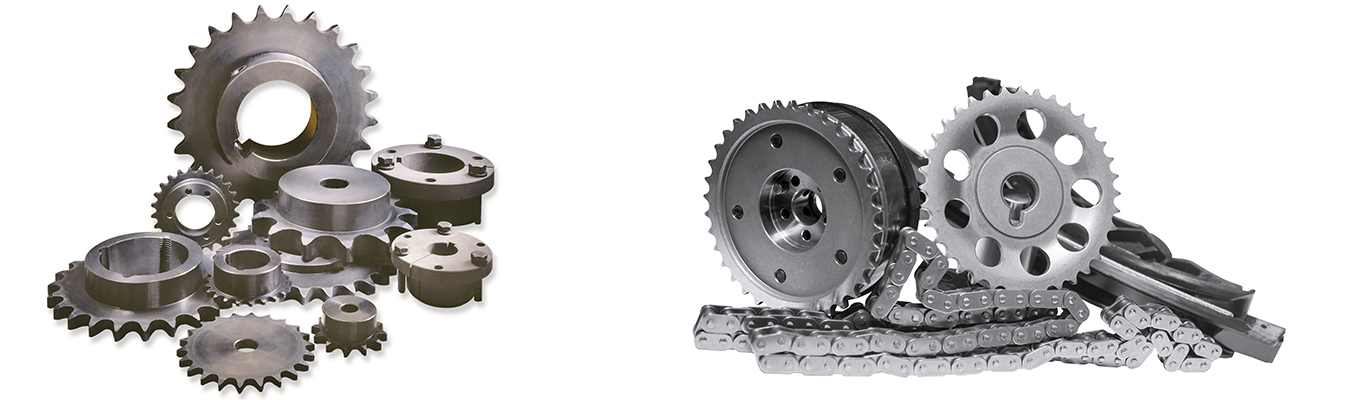

– A sprocket or sprocket-wheel is a profiled wheel with teeth, cogs, or even sprockets that mesh with a chain, track or other perforated or indented material.
– Chain drive is a way of transmitting mechanical power from one place to another. It is often used to convey power.
– Sprockets with Removable Rim Segments, enable replacing wear surfaces without removing the sprocket hubs or bearings, or moving the shafts. These come in both split and non-split versions.
– Wide-Flange, Drum-Type Sprockets, support the wide offset chain commonly used in drag conveyor applications. These sprockets are generally made of cast steel or flame-cut steel plate.
– Another type of sprocket, called a Traction Wheel, is used in bucket elevators instead of conventional chain and sprockets. It has a smooth OD, rather than teeth, and it functions by frictional engagement with the bushings in the chain links.

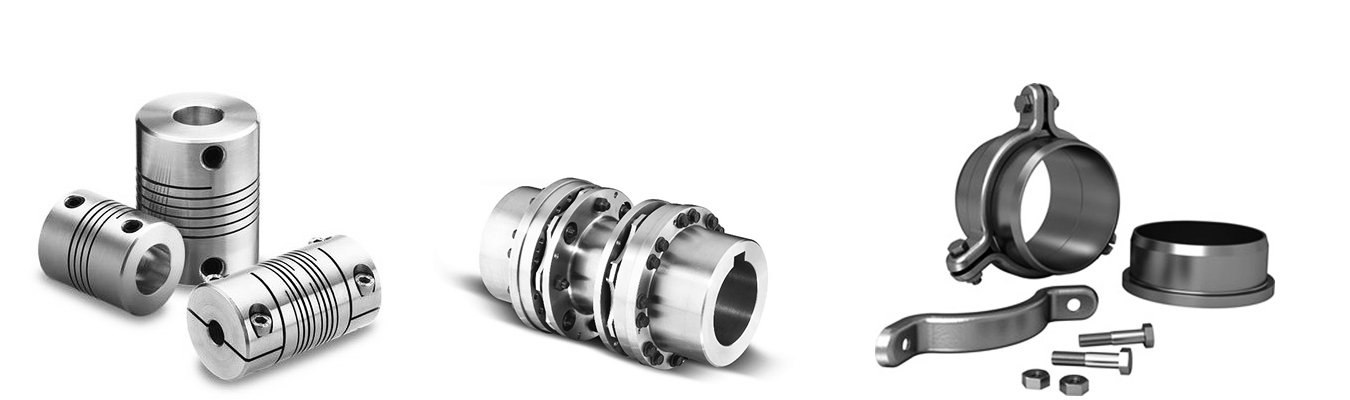

A coupling is a device used to connect two shafts together at their ends for the purpose of transmitting power. Couplings do not normally allow disconnection of shafts during operation, however there are torque limiting couplings which can slip or disconnect when some torque limit is exceeded.
Types
– Clamp or Split Muff Coupling
– Hirth
– Tapered Shaft Lock
– Flexible Coupling
– Bush Pin Type Flange Coupling
– Sleeve or Muff Coupling
– Beam Coupling
– Constant Velocity Coupling
– Diaphram Coupling
– Disc Coupling
– Fluid Coupling
– Gear Coupling
– Grid Coupling
– Oldham Coupling
– Rag Joint
– Universal Joint
– Magnetic Join
– Bellows coupling — low backlash
– Elastomeric coupling
– Resilient coupling
– Roller chain and sprocket coupling
– Schmidt coupling
– To transfer power from one end to another end.(eg: motor transfer power to pump through coupling) Primary function.
– To provide for the connection of shafts of units that are manufactured separately such as a motor and generator and to provide for disconnection for repairs or alterations.
– To provide for misalignment of the shafts or to introduce mechanical flexibility.
– To reduce the transmission of shock loads from one shaft to another.
– To introduce protection against overloads.
– To alter the vibration characteristics of rotating units.
– To connect driving and the driven part slips when overload occurs

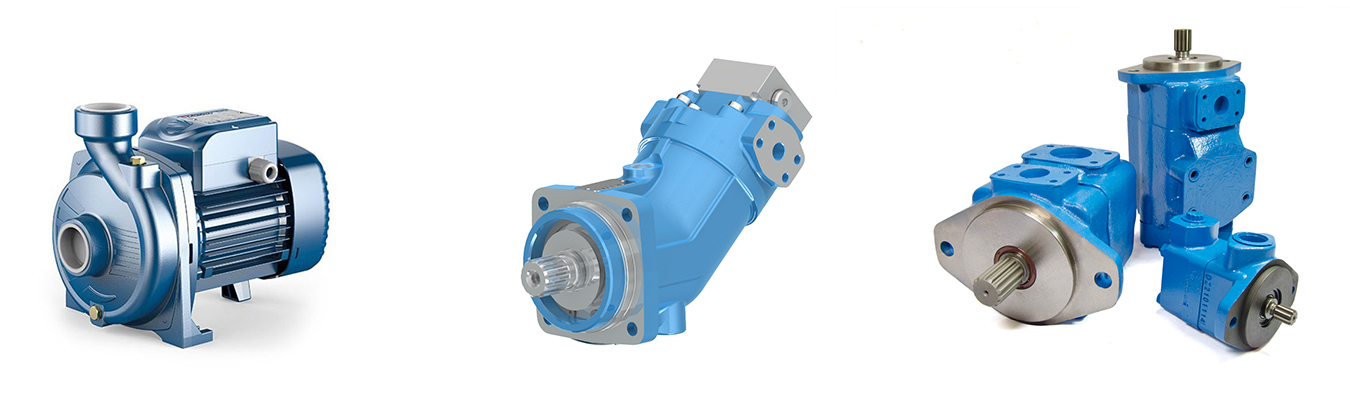

Hydraulic Gear Pumps
– External gear pump
– Internal gear pump
– Gear ring pump
– Screw spindle pump
Hydraulic Piston Pumps
– Axial piston pump
– Radial piston pump
Hydraulic Vane Pumps
– Single chamber vane pump
– Double chamber vane pump
Borehole Pumps
– Centrifugal
– Vertical
Feeders
Ball Mills
Ball mills are used primary for single stage fine grinding, regrinding, and as the second stage in two stage grinding circuits. According to the need of customers, ball mill can be either wet or dry designs. Ball mills have been designed in standard sizes of the final products between 0.074 mm and 0.4 mm in diameter.
Conveyor Mills
JAQ Trading delivers the world’s most comprehensive range of Heavy-duty conveyor belts. Base on more than 30 years of experience in development, manufacture and applications know-how, JAQ Trading designs unique belts and belt systems to meet specific end-user requirements for high performance and cost-efficiency.
Heavy Duty Apron Feeder
BWZ series heavy duty apron feeder designed by JAQ Trading is one new type high-efficiency conveying equipments. It absorbs JAQ Trading decades years’ experience in designing &manufacturing conveying machines and the advanced technology of the world. This apron feeder is especially suitable for short-distance transmission

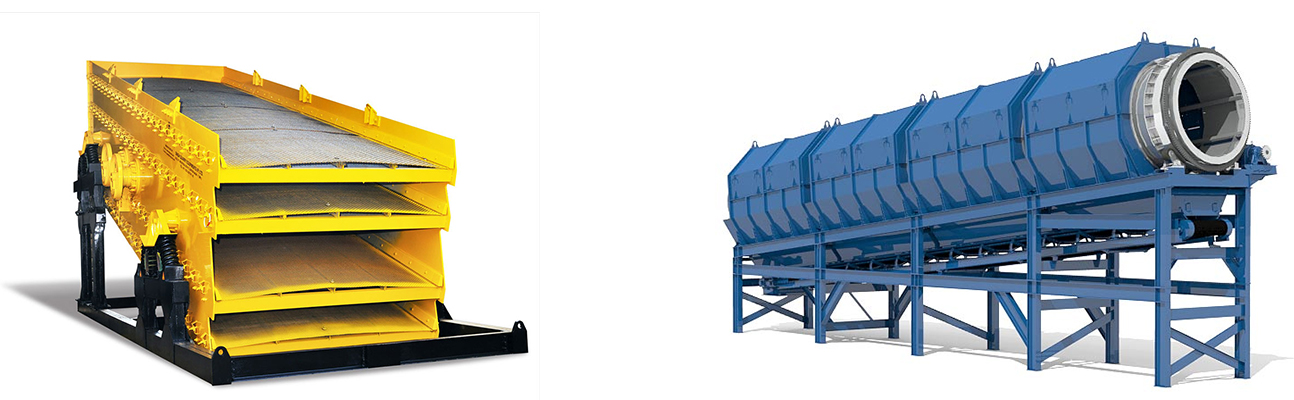

Screeners
There are a number of types of mechanical screening equipment that cause segregation. These types are based on the motion of the machine through its motor drive.
Circle-Throw Vibrating Equipment
This type of equipment has an eccentric shaft that causes the frame of the shaker to lurch at a given angle. This lurching action literally throws the material forward and up. As the machine returns to its base state the material falls by gravity to physically lower level. This type of screening is used also in mining operations for large material with sizes that range from six inches to +20 mesh.
High Frequency Vibrating Equipment
This type of equipment drives the screen cloth only. Unlike above the frame of the equipment is fixed and only the screen vibrates. However, this equipment is similar to the above such that it still throws material off of it and allows the particles to cascade down the screen cloth. These screens are for sizes smaller than 1/8 of an inch to +150 mesh.
Gyratory Equipment
This type of equipment differs from the above two such that the machine gyrates in a circular motion at a near level plane at low angles. The drive is an eccentric gear box or eccentric weights.
Trommel Screens
Does not require vibrations, instead, material is fed into a horizontal rotating drum with screen panels around the diameter of the drum.
Chemical Tumbler Screener
Washers
TV 2 Ultra Portable Wash Plant
The portable vibratory gold wash plant, the TV2, is rated up to 40 tons per hour. It is ideal for lower capacity or testing or gold prospecting where your raw materials are more of a sandy and gravely type material and not very sticky or clay bound. The TV2’s horizontal design allows for much lower feed height and improved cleaning action of materials. It accepts up to 8-inch material and incorporates two decks for thinning and separation.
An ideal machine where your raw materials are more of a sandy and gravely type material and not sticky or clay bound. This design allows for nugget and fine gold recovery. The TV5’s horizontal design allows for much lower feed height and improved cleaning action of materials. It accepts up to 8-inch material and incorporates three decks for thinning and separation. It has independent spray bars with heavy duty, changeable, brass spray nozzles. All wear areas have replaceable bolt-in wear plates, oversized diameter shafts, oversized bearings, and a high tensile frame. Testing in clean river bottom material, the wash plant was able to achieve 109 tons per hour with 1,260 gallons per minute of water usage. Under correct conditions, we rate this machine between 50 to 115 tons per hour
SV 6 Vibratory Wash Plant
Our vibratory gold wash plant, the SV9, (aka Monster Red) is rated up to 450 tons per hour. This design allows for nuggets and fine gold recovery. The SV9’s horizontal design allows for much lower feed height and improved cleaning action of materials. It accepts up to 8-inch material and incorporates two to three decks for thinning and separation. It has independent spray bars with heavy duty, changeable, spray nozzles.
S9 Vibratory Gold Wash Plant
The vibratory gold wash plant, the SV6, is rated up to 180 tons per hour. This design allows for nuggets and fine gold recovery. Its horizontal design allows for much lower feed height and improved cleaning action of materials. It accepts up to 8-inch material and incorporates two decks for thinning and separation. It has independent spray bars with heavy duty, changeable, brass spray nozzles.
